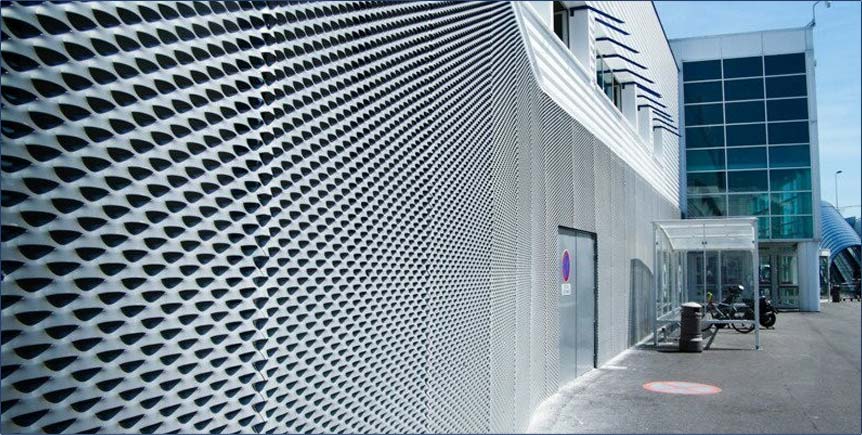

Decorative expanded metal panel, also called decorative expanded mesh or expanded aluminum mesh. It is produced of whole panels of aluminum plate by punching and expanding machine, and the main hole shapes are diamond and hexagonal. Compared with stainless steel or carbon steel, aluminum material is lighter and has very good strength, it is very suitable to be used as façade, ceiling, partition, handrail infill and wall decoration material.
Decorative expanded metal panel normally can be colored by fluorocarbon coating, after painted the mesh will have good weatherability and corrosion resistance, also the mesh can be painted in many colors this can make your building more attractive.
The decorative expanded metal panel normally be used as inner or outer decoration for shopping mall, hotel, gymnasium, theater, museum, etc.
Product Features:
●Attractive out look.
●Sound absorption and light transmission.
●Light weight with high strength.
●Easy for installation.
●Low cost.
The main parameters of decorative expanded metal panel are:SWD*LWD, Strand Width, Plate Thickness, Mesh Width and Mesh Length.
 |  |
SWD:Short Way of Diamond LWD:Long Way of Diamond SWO:Short Way of Opening LWO:Long Way of Opening |
Following is the common specifications of decorative expanded metal.
 |  |
| Decorative Expanded Metal for Ceiling | Decorative Expanded Metal for Facade |
Common Specifications of Decorative Expanded Metal for Ceiling | |||||
Application | SWD*LWD | Thickness | Strand | Material | Max Width |
Ceiling | (mm) | (mm) | (mm) | Aluminum | (mm) |
8*16 | 1~2 | 2~3 | 1500 | ||
10*20 | |||||
13*25 | 1~3 | ||||
15*30 | 2~10 | ||||
18*30 | |||||
20*40 | |||||
23*55 | |||||
30*60 | |||||
40*80 | |||||
13*45(hexagonal) | 2~5 | ||||
15*75(hexagonal) | |||||
16*70(hexagonal) | |||||
Common Specifications of Decorative Expanded Metal for Facade | |||||
Application | SWD*LWD | Thickness | Strand | Material | Max Width |
Facade | (mm) | (mm) | (mm) | Aluminum | (mm) |
40*80 | 1.5-4.0 | 5~10 | 2000 | ||
50*100 | 5~20 | ||||
50*115 | |||||
50*135 | |||||
50*150 | |||||
80*200 | 5~30 | ||||
80*220 | |||||
25*120(hexagonal) | 5~20 | ||||
40*230(hexagonal) | |||||
BZWIREMESH can also provide the decorative expanded mesh according to clients’ design.
The decorative expanded metal panels can be treated and colored by Fluorocarbon Coating, Powder Coating, Painting Spraying or anodizing.
Fluorocarbon coating is the commonly used treatment, and after fluorocarbon coating the color will be very bright, and the mesh will have good weatherability and corrosion resistance, it will has a long service life in out-door environment.
BZWIREMESH using RAL color system, following is the common used color, and clients can also provide us the color chart for customization.
|
|
|
| GOLD | COPPER | GREY |
|
|
|
| CHAMPAGNE GOLD | BRONZE | BLACK |
