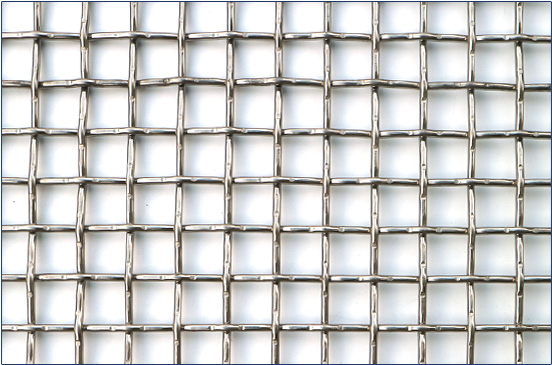

Stainless steel crimped wire mesh

Stainless steel crimped wire mesh is crimp the metal wire first, and then woven the wire into mesh. Because of the special woven craft, it is very suitable to produce the mesh with thick wire. The structure of stainless steel crimped wire mesh is very stable and with good outlook. It is normally used for screening of granules or the decoration and protection for architecture. It is widely used in food, mining, chemical, pharmaceutical, petroleum, metallurgy, machinery, protection, construction, handicrafts and other industries.

Product Features:

●Strong structure and stable surface.

●Good outlook.

●Various material and specifications available.

●Easy for processed and widely used.

The woven craft of stainless steel crimped wire mesh

According to the wire diameter and opening size matches, or according to clients’ requirements. Stainless steel crimped wire mesh has following four woven type:

Flat top Crimped	Lock Crimped	Pre-crimped before weaving	Intermediate crimp

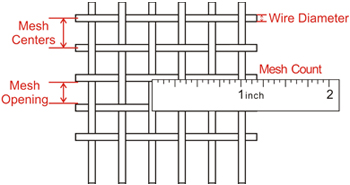

The main parameters of stainless steel crimped wire mesh is wire diameter, mesh opening, mesh width and length.

●The wire diameter range is from 0.45mm to 10mm.

●The mesh opening range is from 0.6mm to 150mm.

●The common width of the mesh is 1m~5m, and common used width is under 2m.

●The stainless steel crimped wire mesh is normally produced in rolls or in panels.

 The stainless steel crimped wire mesh is normally produce of SS304 or SS316 hard wire. And carbon steel, per-galvanized carbon steel, brass and copper are also the normal used material for stainless steel crimped wire mesh.

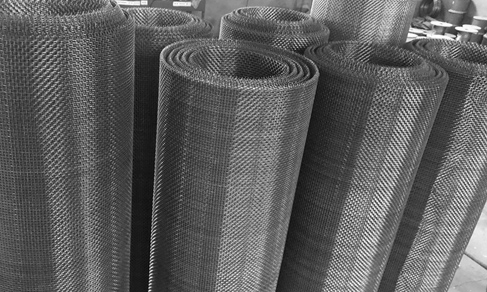

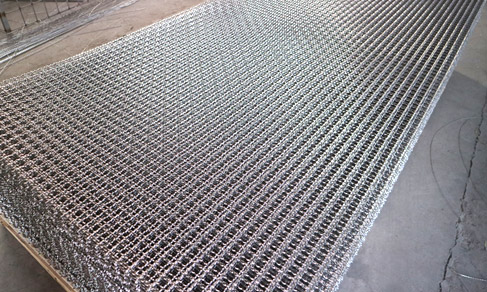

Crimped wire mesh rolls	Crimped wire mesh panels

Following is the common specifications of stainless steel crimped wire mesh:
